HZS25 portable concrete batch plants for sale

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

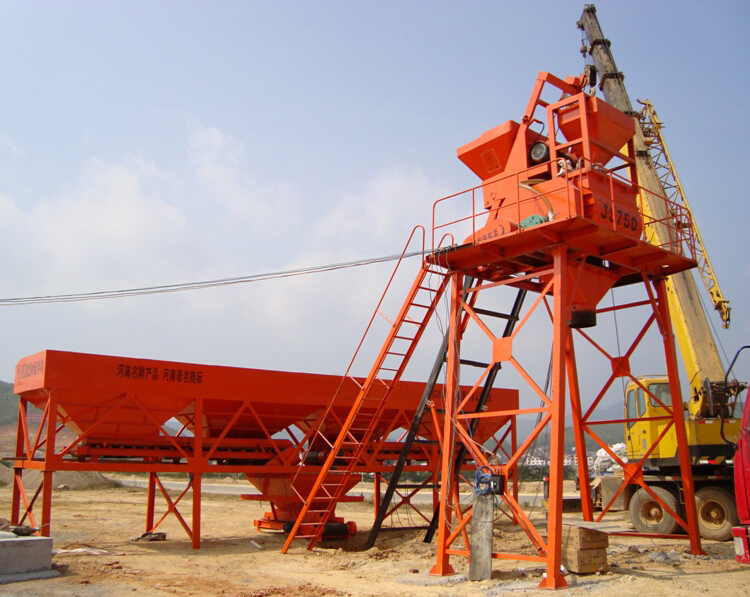

HZS25 portable concrete batch plants for sale

Description of portable concrete batch plants for sale:
HZS25 portable concrete batch plants for sale adopts JS series twin shaft compulsory concrete mixer, producing homogeneous concrete cement with good quality in short time. The easily damaged parts could last for long time, convenient to operate and maintain. It applied the latest design for electronic weighing, computer control and digital display. The electronic weighing system has a buffer device and automatic volume compensation with high accuracy. The sand and gravel feeding system applied inclined belt with great width, the maintenance walkways is installed. It is the ideal choice for producing high-quality concrete cement.



Features of portable concrete batch plants for sale:

1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. With its modularization structure, it is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
6. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
7. Human-based intelligent control facilitates the operation greatly.
8. Structural members are durable, and most electric elements adopt world famous brands.In addition,we have concrete batching plant in Philippine and we focus greatly on our products quality.If you are interested in any of our production,please contact us.We are looking forward to establish business relationship between us based on our mutual benefits.



Technical parameters of this production line


Specification Value
Productivity(m3/h) 25
Capacity of Mixer(m3) 0.5
Mixer Power(kw) 18.5
Discharge Height(m) 3.8(for customers choice)
Aggregate Bin(Quantity) 3
Aggregate Bin Capacity(m3) 0.8
Max.Weighing Value of Aggregate(kg) 500
Max.Weighing Value of Cement(kg) 300
Max.Weighing Value of Water(kg) 160
Max.Weighing Value of Additive(kg) 20
Aggregate Measuring Accuracy(%) ≤2
Water,Cement,Additive Measuring Accuracy(%)                       ≤1
