HZS75 Concrete Batching Plant Design

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

HZS75 concrete mixing plant belongs to the company's range of products in medium size. HZS75 type of concrete mixing station has the features of a grand appearance, large maintenance spac and high productivity. This production line is mainly suitable for medium to large construction sites and commercial concrete, piles, precast concrete focuing stirring places.

Main features of HZS75 batching plant

1. Combined structure and modular unit, convenient to install and remove;

2. Mixing and aggregate lifting system adopt JS1500 double-shaft compulsory concrete mixer.

3. Aggregate batching system adopts PLD2400 concrete batcher which offers efficient and accurate measurement;

4. Powder lot is electronic measured, highly accurate dosing;

5. Water is flow-metering, simple and practical, highly accurate dosing.

Here is the details picture to help customers know our machine better

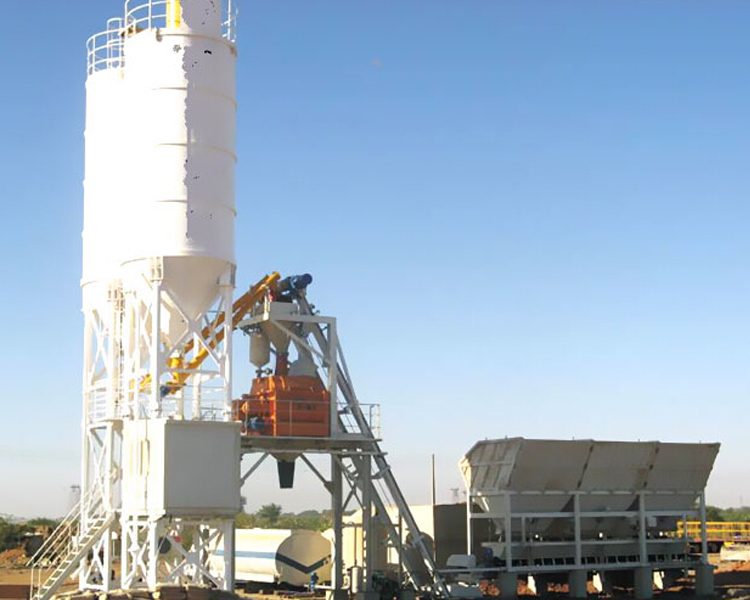

          hzs75 plant

Performances of concrete batching plant

1.Great mixing performance

It adopts the JS1500 twin shafts forced mixing machine with strong ability unifrom mixing quality and high production efficiency, which can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.

2.Good operating performance

Adopting computer networks and computer-controlled technology can achieve networked clinical control and full-automatic control, it will finally give a great standardized management and control for the whole process of concrete production.

3. Excellent environmental performance

All of powdered materials, from the materials, ingredients, measuring, mixing and materials are all in a close state. Stirring in the main building and a fully enclosed conveyor belt structure greatly reduces the dust and noise pollution on the environment.

4. A high degree of reliability

Mixing blades of JS1500 twin shaft forced mixing machine adopts unique high-chromium-manganese alloy wear-resistant materials, and the shaft bearing and seal are in the form of a unique multi-seal which greatly improved the reliability of the main machine.

5. Best maintenance performance

HZS75 plant maintenance and repairing parts has a checking ladder or platform which can make inspection and fixing easily and convenently.



Technical parameters of this whole concrete automatic production line


Specification Value
Productivity(m3/h) 75
Capacity of Mixer(m3) 1.5
Mixer Power(kw) 44
Discharge Height(m) 3.8(for customers choice)
Aggregate Bin(Quantity) 3
Aggregate Bin Capacity(m3) 2.4
Max.Weighing Value of Aggregate(kg) 1300
Max.Weighing Value of Cement(kg) 1100
Max.Weighing Value of Water(kg) 500
Max.Weighing Value of Additive(kg) 40
Aggregate Measuring Accuracy(%) 2
Water Measuring Accuracy(%) 1
Cement Measuring Accuracy(%) 1
Additive Measuring Accuracy(%) 1
Cement Silo(-) Optional
Cement Screw Conveyor(-) Optional
Cement Silo Capacity(-) Optional
Control Mode(-) Auto/Semi Control

Different fields
HZS series plants can be used in different fields, like the hydropwer station, high speed road, railway station, bridge, dock, airport station and various construction site. It also can be used to make concrete for construction site such as construction projects, city construction and prefabrication factories. This model of plants are easy to be installed, dismantled and transported.
