YHZS75 mini concrete mixing plant

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

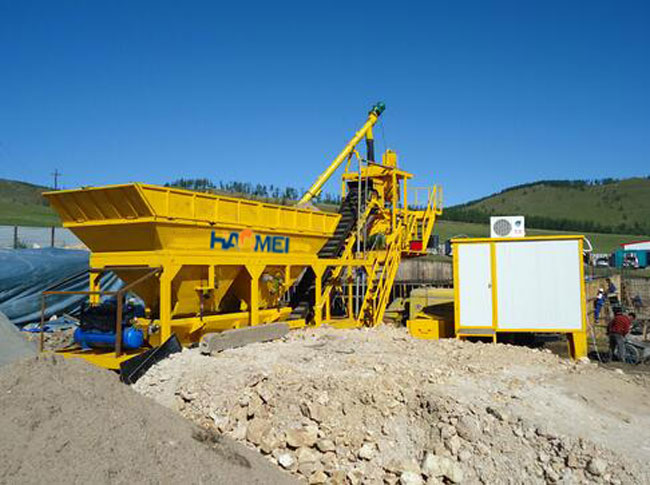

YHZS75 mini mobile concrete mixer plant main picture




YHZS75 mini mobile concrete batching plant  features
1. EATON VICKERS contral valve, Germany HYDAC filter,radiator , Germany EMB and aided control to assist in fast
2. Depend on accurate water measurement and systems will often use moisture probes to measure the amount of water that is part of the aggregate (sand and rock) material while it is being weighed, and then automatically compensate the mix design water target. this machine is recommend yhzs75 small mobile plant.

More information about YHZS75 batching plant
We can deliver YHZS series plants to construction site in the hauling situation, then install quickly on site and get it to run without debugging. This equipment has the characteristic of high automatic, well mixing, high productivity, high flexibility, convenient operation, and good stability. By absorbing new technologies from overseas and domestic, mobile concrete mixing batch plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc. YHZS75 mobile ready mixed concrete batching plant can be used in many situations and it has been an important role  in building areas. This mixing plant integrate mixer, batching system, running system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment into together, installing on a transport chassis.

Techinical parameters of YHZS75 mini concrete mixing plant

Specification Value
Productivity in theory(m3/h) 75
Weighing scale Concrete(Kg) 3750
Weighing scale Cement(Kg) 900
Weighing scale Water(kw) 450
Weighing scale Liquid addictive(kg) 45
Overall power(KW) about105
Power source(V/ HZ) 380/50
Discharging height(M) 3.8
Overall weight(T) 20 (optional parts not included)
Trail speed(km/h) ≤40
Specification(LxWxH) During work(M) 18.1x3.6x8.2m
During transportation(M) 18.6x2.4x4.35m

YHZS75 mini concrete mixing plant packing and shipping

YHZS75 mini concrete mixing plant packing and shipping

YHZS75 mini concrete mixing plant installation

YHZS75 mini concrete mixing plant installation

YHZS75 mini concrete mixing plant exhibition

YHZS75 mini concrete mixing plant exhibition

YHZS75 mini concrete mixing plant exhibition

YHZS75 mini concrete mixing plant certificates

YHZS75 mini concrete mixing plant CE ISO certificates

YHZS75 mini concrete mixing plant company certificates
