QT4-15 Fire-free Brick Making Machine

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

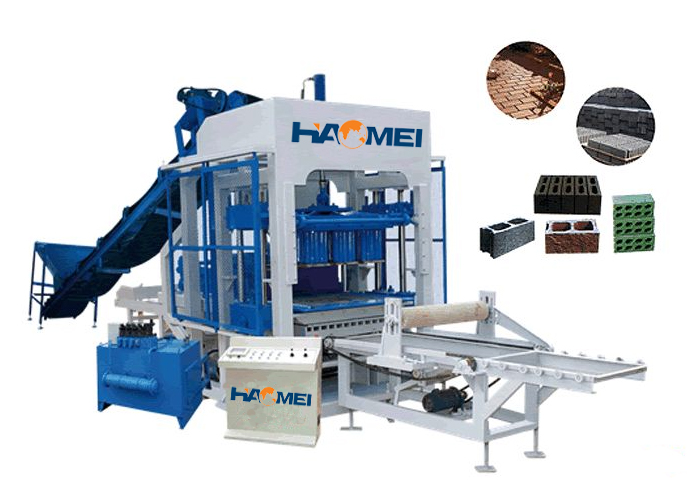

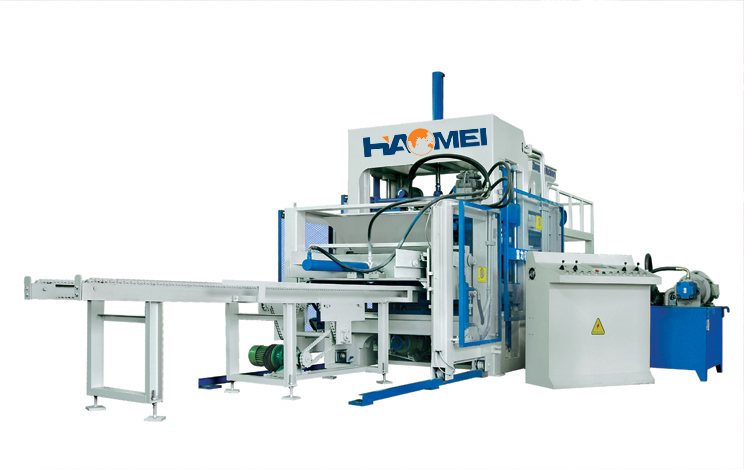

QT4-15 Fire-free Brick Making Machine



Features and advantages of brick making machine

1. Adopts a
PLC aptitude control and dialogue system of human-machine interface
2. Be made of super- strength steel and by special welding technology, the imported elements are applied widely
3. Reliability of the machine in long term running
4. Easy to analyze the chance signal, fault diagnosis and parameters setting, ensure the best operation effect of the machine.
5. Design with super strong vibrating activated force, The computer controls the pressure and flowing rate of hydraulic system; vertical synchrony-vibration;
6. Frequency conversion
7.
Multi use; strong performance; the many kind of products with difference form and size can be made when use the difference mold, such as wall block, honeycomb type block, road block and slope block.



Main Technical Performance and Parameters

Specification Value
model QT4-15
Dimension 5420*1550*2940mm
weight 6.5t
Molding cycle 15-20s
Pallet size 850*570*30mm
power 20kw
Highest frequency 4800-5400r/min

Theoretical Output Table

Type Specification (mm) No./pallet Block/hour Block/8hours
Hollow Block 390*190*190  4 720 5760
Porous Brick 240*115*90 12-14 2160-2520 17280-20160
Standard Brick 240*115*53 24-26 4320-4680 34560-37460
