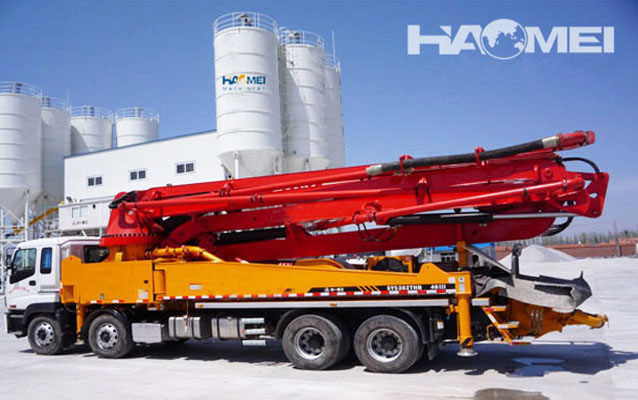

HDT5291THB-37/39/4 Concrete Pump

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

Best Selling Market HDT5291THB-37/39/4 Concrete Pump

Haomei concrete pump truck structure receives has on boom’s fatigue life on HAOMEI's drawing on advanced experience both at home and abroad. Meantime, the company optimized hydraulic system’s design, adopted latest free fluid technique, greatly lessened pumping reversal’s impact on boom,and won many patents on concrete pump truck structure’s optimization and hydraulic system’s design. Perfect product quality control, perfect product making, and absolutely adequate quality inspection make HAOMEI pump truck achieve CHINA’s leading level and international advanced level. Pump system adopts steel plates all from SWEDISH SSAB, which have been treated by high-strength coldrolling with yield strength beyond 900Mpa, to ensure boom system with high-strength and light weight. The system’s aggregate carrying pipe,landing leg,and oil tank,etc. all have been treated by 100% stess removing after welding. Every welding seam has been treated by 100% nondestructive evaluation or X radial check to avoid any tiny defect and to make the machine more enduring.

HDT5291THB-37/39/4 concrete pump truck price features

pumping capacity can be infinitely variably controlled. pump truck expanding speed can be infinitely controled through quicken-slow device. Original imported GERMANY HBC wireless remote-control device with light weight and handy carrying can enable aggregate carrying pipe to take position accurately simply by manual control. boom slewing speed can be infinitely controled . it’s equipped with emergency brake device and diesel engine auto-control-speed device to lower oil-consumption.original imported GERMANY STEIBEL transfer case and REXROTH pump group;original imported slewing reductor and slewing motor;original imported GERMANY HAWE proportional multiway valve;original imported GERMANY REXROTH valve and valve from ITALY oil-control companies;electric control box adopting totally imported parts while control modules like PLC are all products from GERMANY SIEMENS.




Hydraulic System Features of  concrete pump machine

No fussy middle reversal control valve piece lessens reversal impact, avoids too high oil temperature and simultaneously facilitates servicing.Compared with large-oil-tank open system, closed system needs a smaller tank and the tank oil liquid flows gently with no easy emulsifying;Unique buffer technology can lower the system’s high-pressure peak value. In spite of high-output-flow situation, the aggregate carrying pipe vibrates little with the tail pipe steady. Electric proportional variable adjustment makes concrete output flow pour according to actual needs. Free flowing closed hydraulic driving system formed by double pump confluency has such advantages as large output power with small wearing, and smooth reversal with no impact.Intelligent control system makes driving oil flow incessantly and directly enter driving oil cylinder without any loss.

Technial parameters of mini concrete pump

Specification Value
output in theory(m3/h) 125
index of the pump carry capacity(Mpa.m3/h) 586
theoretic pumping pressure(Mpa) 8.5
bucket volume(L) 700
height of top surface of bucket(mm) 1370
model of distribution valve(S) valve
max. operation radius(m) 32.6/34.7
max. operation height(m) 36.6/38.7
max. operation depth(m) 25.5/27
open height of boom(mm) 8450/8830
distance between front landing legs(mm ) 7058/6800
distance between rear landing legs(mm) 6848/7000
distance between front & rear landing legs(mm) 6790/7432
diameter of delivery pipe(mm) 125
length of hose pipe(m) 4
rotary range of boom 365°
quantity of boom 4
rotary angle of each boom(°) 92/180/180/270
wire line control distance(m) 33
romote control distance(m) 200
max. speed(km/h) 90
min. turn radius(mm) 8800
8800(m) 7
approach angle(°) 16
departure angle(°) 11
chassis model HOWO ZZ5307N4647C
wheel base between the first & the second axle(mm) 4600
wheel base between the second & the third axle(mm) 1350
front tread(mm) 2022
rear tread(mm) 1830
max. engine output power(kw) 247(2200r/min)
max. engine output torque(n.m) 1350(1100-1600r/min)
max, gradient ability(%) 35
fuel consumption(L/100km) 34
(××)out dimension(L×W×H)mm 12000×2490×3850/12500×2490
total weightkg 29000/12500×2490×3950

foam concrete pump,isuzu concrete pump truck,diesel concrete pump,boom concrete pump,cement pump machine
