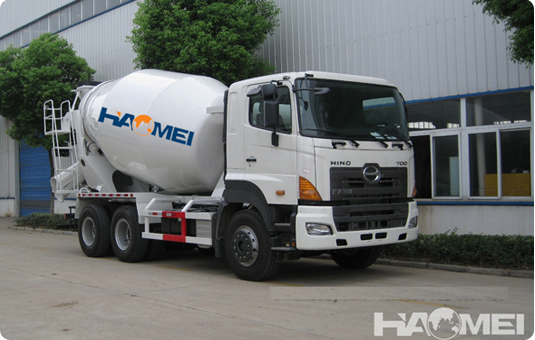

HM16-D Concrete Mixer Truck

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

HM16-D self loading concrete mixer truck for sale Specifications:

1. SINOTRUCK HOWO, HINO chassis can be chosen;

2. Germany ZFP reducer;

3. ISO9001; 2000 certificate

HAOMEI zoomlion concrete mixer trucks are HAOMEI's independently developed products on the basis of absorbing domestic and foreign advanced techniques. The product mainly applies to long-distance mixing transport of concrete mixture,effectively delay concrete coagulation,avoids concrete stratification and eduction,and ensures construction quality and speed. HAOMEI serial concrete mixer truck include many models such as 6m³,8m³,9m³,10m³,12m³,14m³,16m³and can choose any tailor-made-for-mixer-truck special chassis both at home and abroad as supporting part according to customers'choices. The stirring vat driving system adopts original imported America and Germany closed circuit hydraulic system pump,motor,and reductor, and supporting hydraulic parts such as oil tank, radiator,filter,hose connector all adopt imported parts in order to ensure hydraulic system with long using life.



Stirring vat body and helical vanes all adopt B520JJ single-purpose special fine crystal particle hard wearing steel plate from Shanghai Baogang while the easy wearing positions having much contact with concrete such as feeding and discharge bucket chutes,etc. are also stuck with hard wearing steel plate, which correspondingly give the product rather long using life. Multiple mixing arms are set in stirring vat while square and round holes are scientifically arranged in mixing vanes, which both realize real three-dimensional mixing work of concrete with discharge surplus nearly achieving zero and with concrete eduction greatly avoided. Mobile discharge chute can be locked at 4 different positions to achieve discharge operation in different directions. The whole truck adopts blasting and baking finish to produce an elegant and pleasing outline with such advantages as smooth and reliable slewing, speedy discharge,low surplus rate,handy operation,and long using life.

The Advantages of HM16-D cement mixing truck
1. High-intensity drum material, featuring better wear-resistance and long service life;
2. Optimized mixing blades, low material residue;
3. High-quality parts, reliable running;
4. Excellent performance and convenient operation;
5. Imported original hydraulic system.

Technical parameters of concrete mixer truck hydraulic pump


Specification Value
Mixing Capacity(m³) 16
Tank Volume(m³) 24.1
Feeding Speed(m³/min) ≥3.5
Discharging Speed(m³/min) ≥3
Residual Ratio of Discharging(%) ≤0.5%
Water Supply System Air pressure
Water Tank Volume(L) 400
Overall Dimension(mm) 10300*2496*3920
Chassis Model HOWO
Clutch(φ) φ430 Monolithic dry type
Min Ground Clearance(mm) 245
Max Speed(km/h) 90
Engine Max Output Power(kw) 340
Emission Standard Euro Ⅲ
Rated Load(kgs) 16600
Overall Weight(kgs) 31000
Wheelbase(mm) 1800+3600+1350
