YHZS60 mobile ready mixed concrete batching plant

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

YHZS60 mobile ready mixed concrete batching plant is mainly combined by aggregate storage and weighing sysytem,tranportation system,stirring system,discharge system and full automatic controll system.

YHZS series portable concrete batching plant is the same with stationary concrete batching plant in producing procedure, operation mode and maintenance method.At the same time, YHZS series portable concrete batching plant has its own particular characteristics--it is convenient and flexible to be moved,quick and simple to be installed and disassembled,easy to be stored and managed.With its excellent performance



The main features of mobile concrete batching plant?

1.Complete mobile unit:Unit easily transported on-site as well as from project to project, on-board hydraulic system changes plant from travel mode to full operational within 2-3 hours for this mobile concrete batching plant.

2.Reliability of mix consistency:Computer and manual dual control mode can be converted easily by a simple switch, twin-shaft concrete mixer offers this mobile concrete batching plant a consistent high grade of evenly mixed material, with its good quality mixing blades, paddles, arms and liners.

3.Highly precise dosing of water, cement, fly-ash, additivemobile concrete batching plant dosing is realized by three-point suspensionsensors, and they are all metered separately.

Technical Parameters

Specification Value
Productivity in theory(m3/h) 60
Weighing scale Concrete(Kg) 3000
Weighing scale Cement(Kg) 720
Weighing scale Water(kw) 360
Weighing scale Liquid addictive(kg) 36
Overall power(KW) about 60(optional parts not included)
Power source(V/ HZ) 380/50
Discharging height(M) 3.8
Overall weight(T) 20 (optional parts not included)
Trail speed(km/h) ≤40
Specification(LxWxH) During work(M) 17x3.6x8.2
During transportation(M) 17.6x2.4x4.35

YHZS60 mobile ready mixed concrete batching plant packing and shipping

YHZS60 mobile ready mixed concrete batching plant packing and shipping

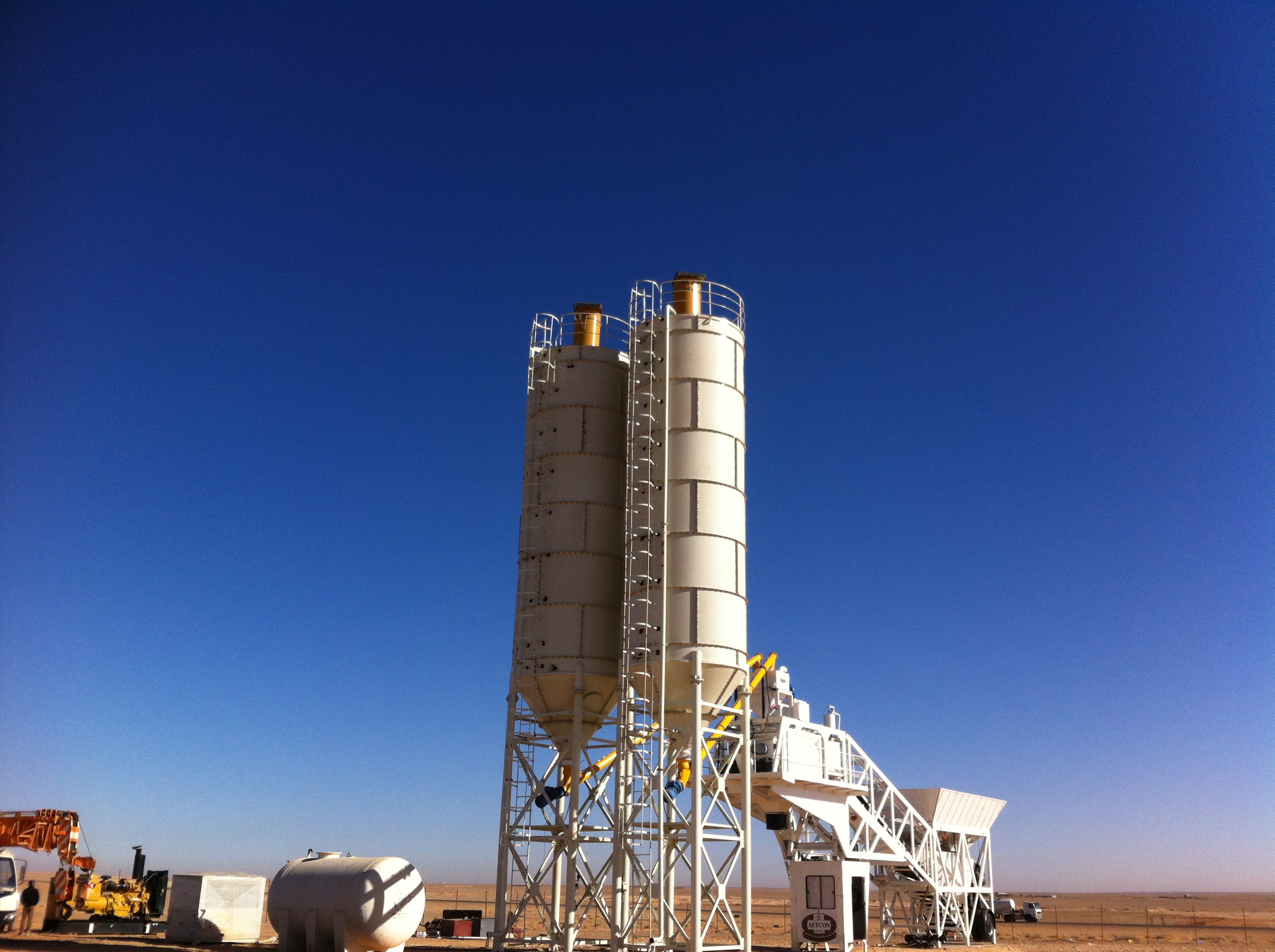

YHZS60 mobile ready mixed concrete batching plant installation

YHZS60 mobile ready mixed concrete batching plant installation

YHZS60 mobile ready mixed concrete batching plant exhibition

YHZS60 mobile ready mixed concrete batching plant exhibition

YHZS60 mobile ready mixed concrete batching plant exhibition

YHZS60 mobile ready mixed concrete batching plant certificates

YHZS60 mobile ready mixed concrete batching plant CE ISO certificates

YHZS60 mobile ready mixed concrete batching plant company certificates
