YHZS60 water cooler system concrete plant

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

YHZS60 water cooler system concrete plant



HaoMei YHZS series mini mobile concrete batching plant includes YHZS25 (25m3/h) mobile concrete plant, YHZS60 (60m3/h) mobile concrete plant, YHZS75 (75m3/h) mobile concrete plant etc. If you use belt conveyor to feed aggregates into the mixer continuously, the mixing efficiency is highly improved.Definition of mini mobile concrete batching plantThe mini mobile concrete batching plant is composed of material suppy, weighing, mixing and electric control system, with the optimized design of the concrete batching plant, it can be overall transferred and moved by the towing vehicle. It is widely used in larger than medium-sized mobile projects, like water and electricity, roads, airports, etc.

Features of mini mobile concrete batching plantMini mobile concrete batching plant is designed and developed especially for the users whose constructional project aim at shorting construction period, long construction line and frequent transition. The structure of mobile concrete mixing plant is compact, small floor area coverage, easy installation and high degree of automation. The movement function of mobile concrete plant is admirable.Usages of mini mobile concrete batching plantMini mobile concrete batching plant is widely used in road and bridge construction, architecture, water conservancy and construction of long term highway project.As a China-based professional hopper concrete mixing plant manufacturer and supplier, we at Haomei also provide screw conveyor, concrete mixer truck, concrete block making machine, concrete batching plant and cement silo, etc. All our products are manufactured strictly according to the ISO9001 quality management system, resulting in reliable quality, so you can feel secure in choosing our construction machinery. Due to their reliable performance, our products are highly sought after by customers from Morocco, Yemen, Botswana, Libya, Zambia, Nigeria, and other countries. For more information about any of our products, please feel free to contact Haomei via email or at the contact addresses available on this website.

Technical Parameters

Specification Value
Productivity in theory(m3/h) 60
Weighing scale Concrete(Kg) 3000
Weighing scale Cement(Kg) 720
Weighing scale Water(kw) 360
Weighing scale Liquid addictive(kg) 36
Overall power(KW) about 60(optional parts not included)
Power source(V/ HZ) 380/50
Discharging height(M) 3.8
Overall weight(T) 20 (optional parts not included)
Trail speed(km/h) ≤40
Specification(LxWxH) During work(M) 17x3.6x8.2
During transportation(M) 17.6x2.4x4.35



YHZS60 water cooler system concrete plant packing and shipping

YHZS60 water cooler system concrete plant packing and shipping

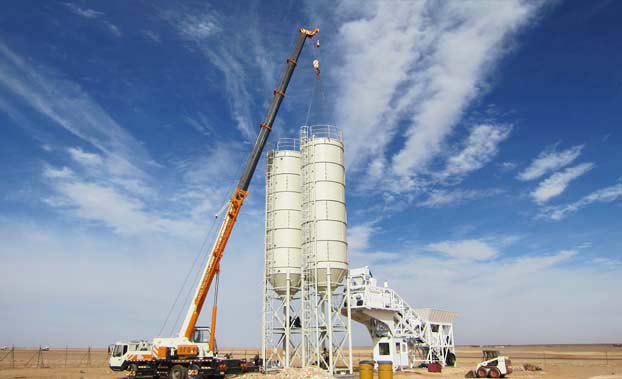

YHZS60 water cooler system concrete plant installation

YHZS60 water cooler system concrete plant installation

YHZS60 water cooler system concrete plant exhibition

YHZS60 water cooler system concrete plant exhibition

YHZS60 water cooler system concrete plant exhibition

YHZS60 water cooler system concrete plant certificates

YHZS60 water cooler system concrete plant CE ISO certificates

YHZS60 water cooler system concrete plant company certificates
