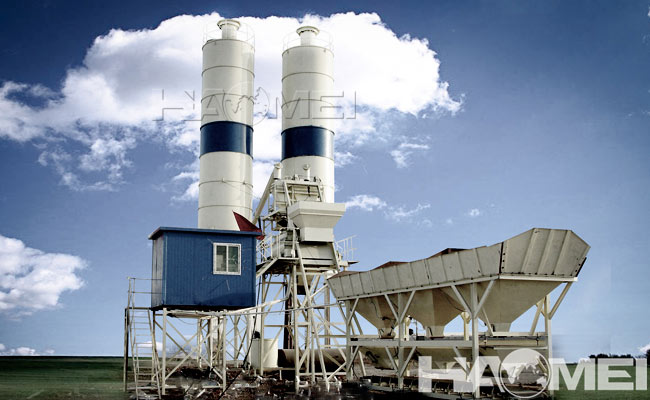

As Haomei Machinery's flagship model for the global small and medium-sized infrastructure and county-level commercial concrete market, the 50m3/h small concrete batching plant consistently ranks among the most frequently repurchased models. Having worked in the industry for many years, I often say that when choosing a small concrete batching plant, don't be greedy for size; the right configuration is key to its usability. This HZS50 concrete batching plant avoids redundant feature stacking; all configurations are refined around the three core requirements of "stable mass production, precise proportioning, and rapid deployment," using precise parameter configurations to support long-term stable production performance.

The HZS50 concrete batching plant comes standard with a JS1000 twin-shaft forced concrete mixer with a nominal discharge capacity of 1000L/pan and a feed capacity of 1600L. Equipped with dual 18.5kW drive motors, it offers ample power redundancy, enabling long-term stable operation at full load. The standard mixing cycle is 60 seconds, with a theoretical production capacity precisely corresponding to 50m3/h. Both the mixing blades and liners are made of thickened high-manganese steel. The blade linear velocity is controlled within the optimal range of 1.6 m/s. The mixing process creates a three-dimensional material flow field of shearing, tumbling, and axial pushing, ensuring thorough mixing without dead zones. The mortar density variation coefficient is ≤0.8%, enabling stable production of C10-C50 grade ordinary concrete and pumped concrete. Under normal operating conditions, the service life of the main unit's wear-resistant parts is ≥7000 hours, 30% longer than comparable models, significantly reducing long-term consumable costs.

The entire metering system of HZS50 concrete batching plant uses four independent electronic weighing modules, completely avoiding the accumulation of measurement errors. The aggregate side is equipped with a PLD1600 batching machine, supporting simultaneous metering of 3-4 types of aggregates, with a dynamic weighing error ≤±2%. Cement, fly ash, and other powder materials use a screw conveyor with a precision electronic scale, with a metering error ≤±1%. Water and admixtures are metered using both flow rate and weighing verification, with errors also controlled within ±1%. The system features a built-in dynamic drop compensation algorithm that automatically adjusts valve closing timing based on material characteristics, eliminating the need for repeated manual calibration. Overall metering accuracy fully complies with EN 206 and ISO 19720 international standards, and the standard deviation of the 28-day compressive strength of the produced concrete can be controlled within 2.5MPa, with batch consistency far superior to simpler models in the same price range.

The entire small concrete batching plant adopts a highly modular design, with over 80% of core components pre-assembled in the factory. After disassembly, all components are compatible with standard 40HQ container transport. On-site installation only requires flange connection and wiring connection, eliminating the need for secondary welding. Installation, commissioning, and production can be completed in 5-7 days, shortening the construction period by nearly half compared to traditional modular substations. The overall footprint is approximately 14m × 7.5m, requiring minimal site space; it can be installed in idle sites in rural towns or small construction sites in urban areas.

The 50m3/h small concrete batching plant is equipped with an industrial-grade PLC control system and a color touchscreen interface, supporting multiple languages, it features automatic/manual dual modes, real-time display of over 20 operating parameters, automatic warnings for abnormal situations, and fault location indication. Ordinary workers can operate it independently after 3 days of training. For the export market, the entire unit supports multiple voltage standards (380V/415V/440V) and comes standard with CE certification, allowing for rapid adaptation to the power grids and compliance requirements of different countries. Haomei also provides 24-hour remote technical support and fast shipping of core components, eliminating overseas customers' concerns about operation and maintenance.

Having worked in the industry for many years, I've always believed that 50m3/h is the "golden capacity" for small concrete batching plants—not too big, not too small, just enough to cover the daily needs of most small and medium-sized projects, without causing idle capacity. The advantage of Haomei's HZS50 small concrete batching plant lies in its meticulous attention to every core configuration, avoiding cost-cutting or unnecessary features, delivering truly stable output to customers through precise configuration.
