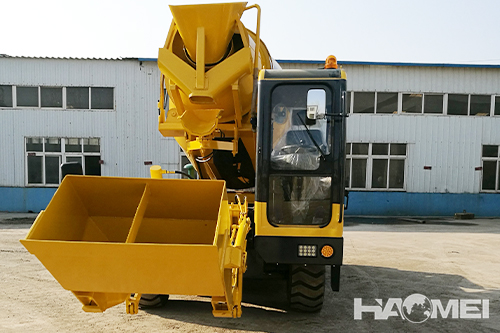

3.5 m3 Self Loading Concrete Mixer Truck
Tel:+86-371-65621392
- Condition: New
- Delivery port: Qingdao or Tianjin port, China
- Payment term: L/C, T/T
- Guarantee period: 12 months
- Delivery time: 10-15 days after received deposit
- Installation time: 20days
Product Details
Self loading concrete mixer truck is designed to work as a ready-mix concrete delivery vehicle and is suited to work in all types of areas, from busy city centres to remote villages. With a 3.5m3 wet concrete output it can handle all types of concrete deliveries, from large pour volume jobs to small deliveries for the DIY markets. A self loading concrete mixer truck can even work on-the-job as an on-site batching unit.
The configuration of self loading concrete mixer 3.5m3 are:
| Equipment Model | 3.5 cubic self loading concrete mixer truck |
| Drum geometrical capacity | 4740L |
| Discharge Capacity | 3500L |
| Engine Model | Yuchai 4105 Turbo-Charged |
| Rated Power | 85kw |
| Gear box model | ZL-280 Power Shift Gearbox |
| Gear | 2 Forward 2 Back,Front Wheels Steering |
| Fuel tank | 75 L |
| Total hydraulic system capacity | 75 Liters |
| Oil tank | 16 liters |
| Reducer | HJ80-43 |
|
Transmission |
Hydraulic |
| 4 wheel driver,2 wheel steering | |
| Hydraulic Pump | CBGQ 2040/2080 |
| Hydraulic Motor | BM5-160 |
| Water tank | 620 L |
| Water supply | Time relay |
| Overall dimensions(L*W*H) | 7830*2680*4170 |
| Wheelbase (mm) | 2900 |
| Curb Weight (kg) | 7500 |
| Drive Form | Torque converter |
| Drum rotary | 270º |
| Drum Mixing Speed (r/min) | 13-20 |
| Max.Speed (km/h) | 30 |
| Maximum grade | 30º |
| Maximum turning radius (mm) | 5300 |
| Minimum ground clearance (mm) | 380 |
The advantage of Haomei self mixing concrete truck are:
