HZS120 Concrete Batching Plant

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

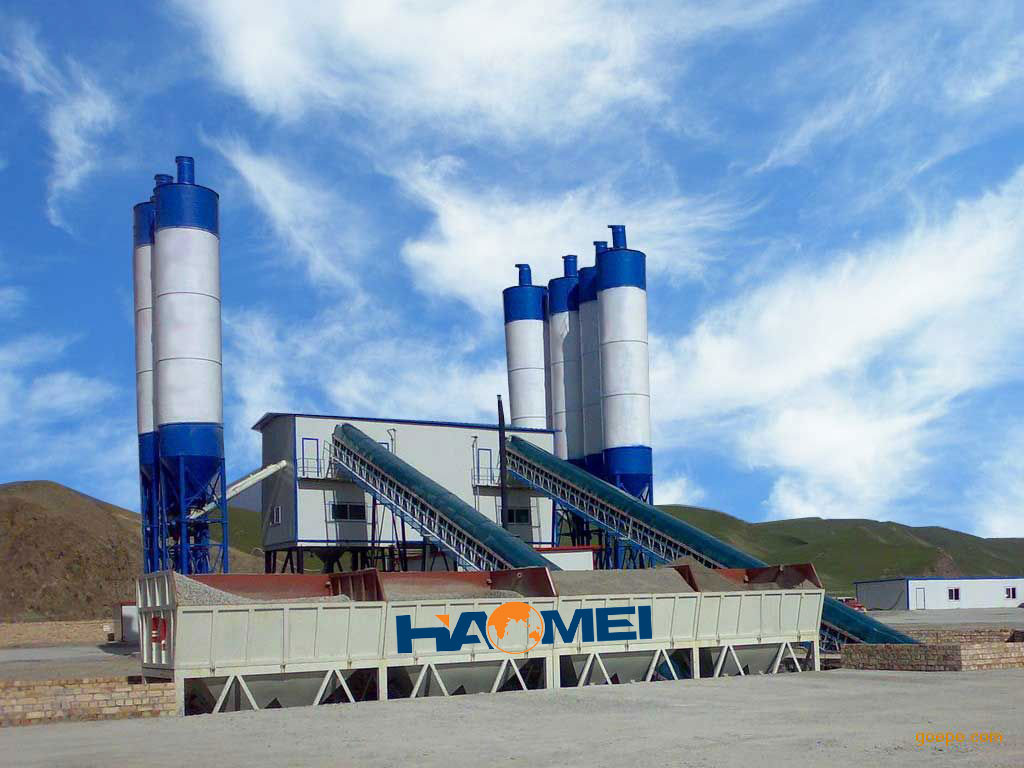

HZS120 horizontal concrete batching plant

This concrete batching plant belongs to Haomei's newly developed products on its many years' experience with international top technology, advanced technicques and great designs both in China and abroad in recent years. This machine can help us to realize the great quality of concrete and has a high level compared with the same products in China. Best noise control and high efficiency and great environmental protection and so on. Thus it was chosen as one of the NATIONAL KEY NEW PRODUCTS in 2006. HZS120 concrete mixing plant consists of batching machine, mixing machine and pressure control these production departments with high efficiency. It is mainly used in big construction sites and concrete factory places.



Main characters of HZS120 Ready mixed concrete batching plant

1.Easy to operate and convenient. Easy to install and dismantle. We can open the side packing to check and change the parts.

2.All the process of weighting, metering and conveying are in the close situation to avoid dust into other parts and protect the rnvironment.

3.Stable to run can reduce the noise. And the main mixing plant and conveyor are packed with environmental materials to protect the environment.

4.Using a modular structure, the removal of whole installation is very convenient, low cost.

5.Adopts JS2000 (JS2000B) twin-shaft forced type concrete mixer, good mixing quality and high efficiency.

6.Aggregate batching machine uses PLD3200 type ingredients, measurement accuracy, high production efficiency.

7.Cement, water, liquid additive ingredients are used in electronic scales of measurement, high dosing accuracy.

8.Water supply systems using pressurized water pump principle, so that the water flow speed, spray evenly.

9.Using the belt type to deliver aggregate material, long life and high efficiency.

10.The main components of the electrical control system are all imported, reliable performance, easy operation, the print function, with air conditioning.

11. All the materials adopts independent measurement scales, a scale with a table to improve the measurement accuracy;

12. Aggregate lifting belt machine used hanging type reducer which is running smoothly and powerful, easy to maintain;


Techinal parameters of this
batching plant

Specification Value
Productivity in theory(m3/h) 120
Mixer JS2000
Capacity of Mixer(m3) 2
Mixer Power(kw) 74
Discharge Height (m) 3.8(for customers choice)
Aggregate Bin (Quantity) 4
Aggregate Bin Capacity (m3) 3.2
Max. Weighing Value of Aggregate(kg) 1500
Max. Weighing Value of Cement(kg) 1100
Max. Weighing Value of Water(kg) 1500
Max. Weighing Value of Additive (kg) 60
Aggregate Measuring Accuracy(%) 2
Water Measuring Accuracy(%) 1
Cement Measuring Accuracy(%) 1
Additive Measuring Accuracy(%) 1
Cement Silo Optional
Cement Screw Conveyor Optional
Cement Silo Capacity Optional
Control Mode Auto/Semi Control
