HZS50 Concrete Batching Plant

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

HZS50 concrete batching plant features

HZS50 is medium-sized mixing equipment with full-automatic control system. This series plant has achieved modular production and assembly. It has unique features like less investment and quick to install which is suitable for railways, highways, roads, bridges, power plants these concrete construction fields.

China manufacture ready mixed concrete batching plant

The main part of HZS50 stationary concrete mixing plant adopts one or two JS1000 twin-shaft compulsory concrete mixer, and it has indepent frame plantform with concrete mixer, cement, water, additives and other ingredients weighting devices(a combination of a main ingredient mixing system)on it.

For process of HZS50 stationary cement plant, the loader can deliver the materials which offered by batching machine. The twin shafts concrete mixer and cement will be stored in cement silo with the help of screw conveyor to deliver. And the water will be controled by water pump, besides, water and cement will be decided by check weighter.

This whole producton line will be working under the full automatic computer. With the functions of a recipe storage and automatic compensation, and it is also equipped with a separate manual operation system to enable the mixing process manual and automatic control.

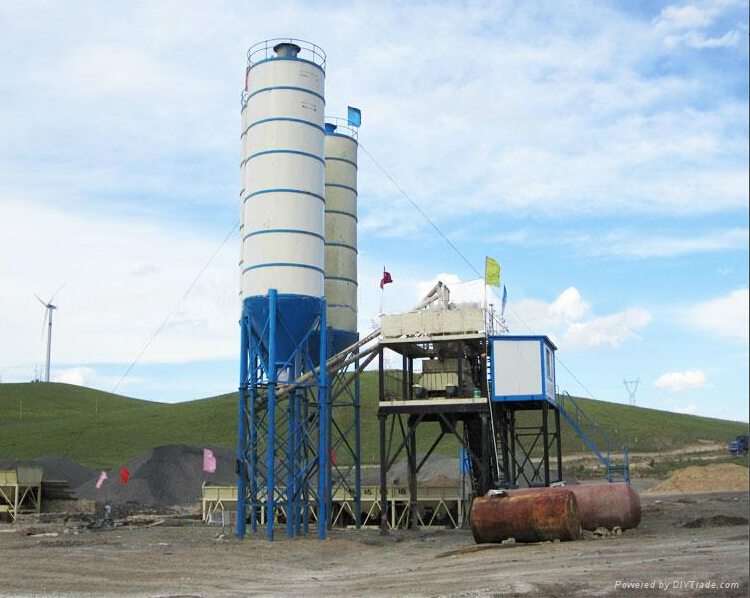

The main picture of HZS50 small portable concrete mixing plant





The technical parameters of HZS50 precast concrete batching plant for sale


Specification Value
Productivity(m3/h) 50
Capacity of Mixer(m3) 1
Mixer Power(kw) 37
Discharge Height(m) 3.8(for customers choice)
Aggregate Bin(Quantity) 3
Aggregate Bin Capacity(m3) 1.6
Max.Weighing Value of Aggregate(kg) 1000
Max.Weighing Value of Cement(kg) 800
Max.Weighing Value of Water(kg) 350
Max.Weighing Value of Additive(kg) 30
Aggregate Measuring Accuracy(%) 2
Water Measuring Accuracy(%) 1
Cement Measuring Accuracy(%) 1
Additive Measuring Accuracy(%) 1
Cement Silo(-) Optional
Cement Screw Conveyor(-) Optional
Cement Silo Capacity(-) Optional
Control Mode(-) Auto/Semi Control
