JS3000 Concrete Mixer

  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

JS3000 Concrete Mixer Specifications
1.capacity as 3m3
2.Large drum for excellent mixing with twin shafts
characters of JS3000 china manufacturer concrete mixer
This concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars. Auto-lubrication system ensures the mixing system can operate continually for a long time. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.

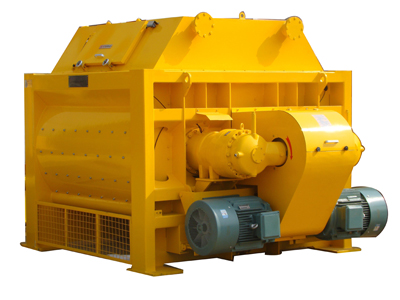

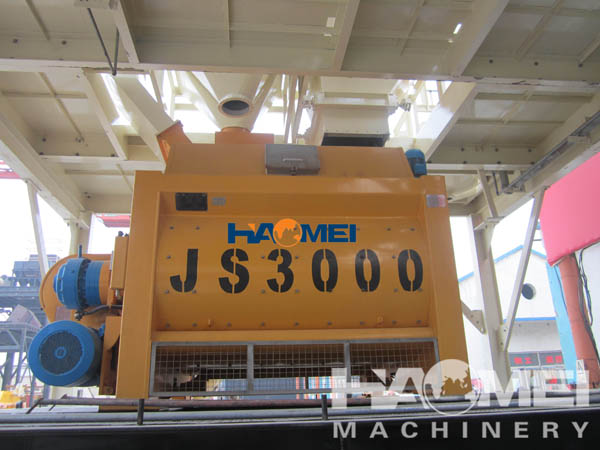

Main picture of JS3000 concrete mixing machine

This machine is widely used in highway, bridge building, electricity station and big concrete batching plant.
Common features:
1. the frame and drum were fixed, and the shaft will never pressed by materials and drum to postpone the working life.
2.adopting the electrical door to avoid the left materials the machine immediately
4.high efficiency and save more labor
5.easy to operate and fix for this machine

Technical parameters
Specification Value
Discharging Volume(L) 3000
Charging Volume(L) 4800
Mixer Capacity(m3) 3.0
Lubrication System(Brand) Choosed
Reducer(Brand) Choosed
Aggregate Size(mm) 60/80
Aggregate Category(Quantity) 4
Working Circle(S) 60
Mixer Motor Power(KW) 2x55
Mixing Speed(r/min) 35.5
Mixing Blade(Quantity) 2x7
Lifting Motor Power(KW) 25
Pump Motor Power(KW) 3
Weight(KG) 10100
Dimensions(mm) 4250x2680x2150
