JS750 Concrete Mixer

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details



Features of mixer
1.mixing capacity as 0.75m3
2.with twin shafts and a long working life

Characters of JS750
Made-in-China concrete mixing machine
JS series ( Mortor Mixer )is a multi-functional mixer, which can be applied to mix dry-hard concrete, plastic concrete, light aggregate concrete and all kinds of mortar. For JS750 concrete mixing machine, it belongs to small type and it has these following characters: easy to operate and maintain, and it can also be used together with dump car, truck.

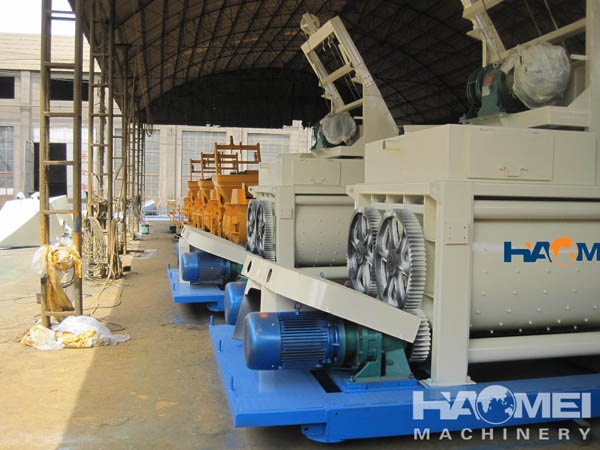

Main picture of concrete mixer

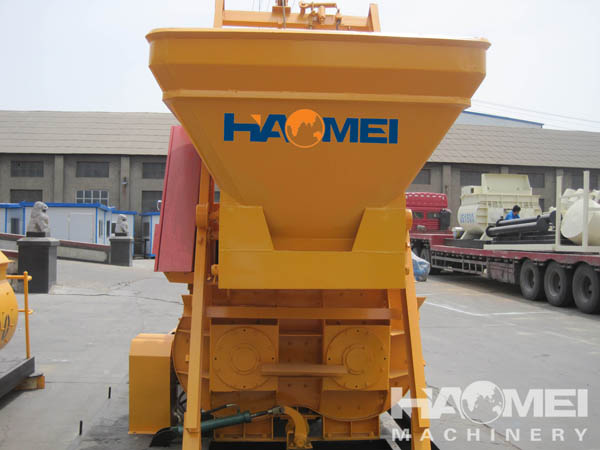

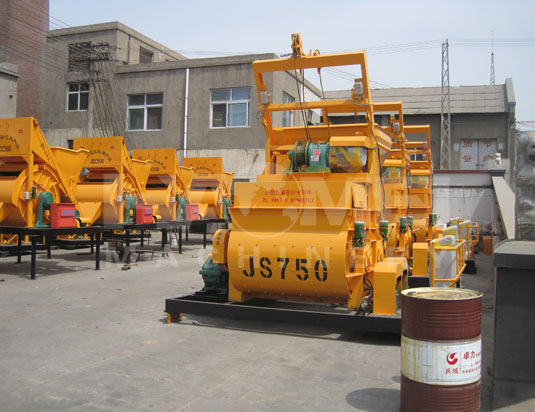

         JS750 Concrete Mixer

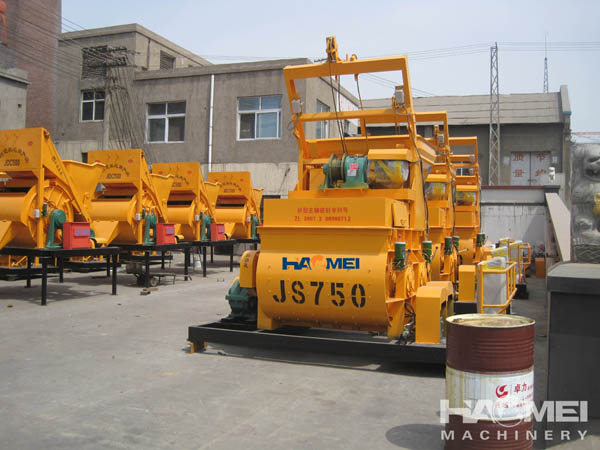

JS750 New Type Bridge using concrete mixer

1. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.
2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
3. Discharge system: Hydraulic & manual mode, drive reposefully and low noise.
4. Working condition: Road, Bridge & Precast product for factory, work independently or be used with correspond batching machine as a mini-type concrete plant.

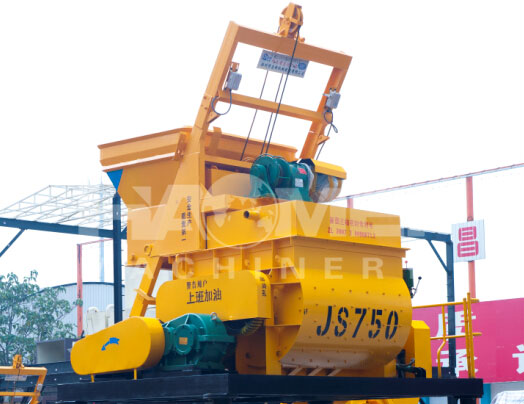

          JS750 Concrete Mixer Machine


Techinal parameters:



Specification Value
Discharging Volume(L) 750
Charging Volume(L) 1200
Mixer Capacity(m3) 0.75
Lubrication System(Brand) Choosed
Reducer(Brand) Choosed
Aggregate Size(mm) 60/80
Aggregate Category(Quantity) 4
Working Circle(S) 60
Mixer Motor Power(KW) 30
Mixing Speed(r/min) 30.5
Mixing Blade(Quantity) 2x8
Lifting Motor Power(KW) 7.5
Pump Motor Power(KW) 1.1
Weight(KG) 6150
Dimensions(mm) 4550x2250x2450

functions of concrete mix plant
Some suggestion for users of concrete mixing machine
