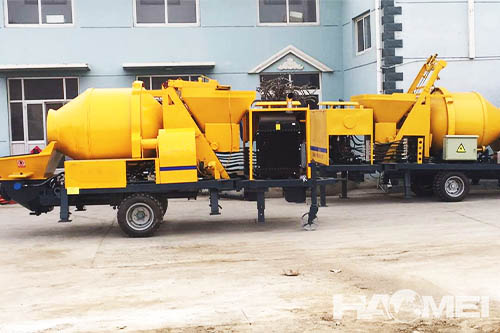

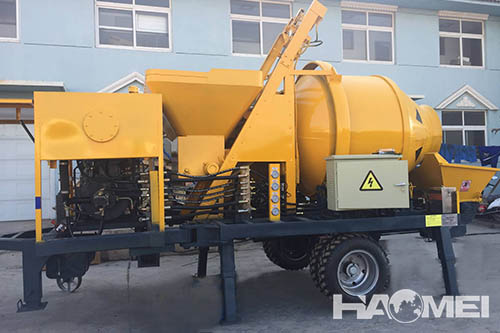

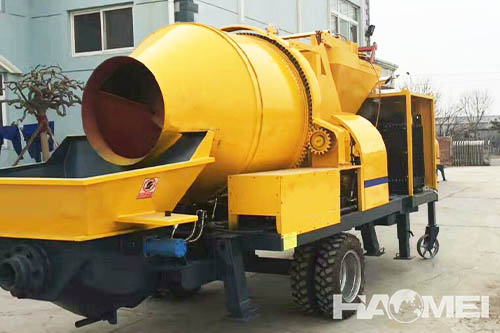

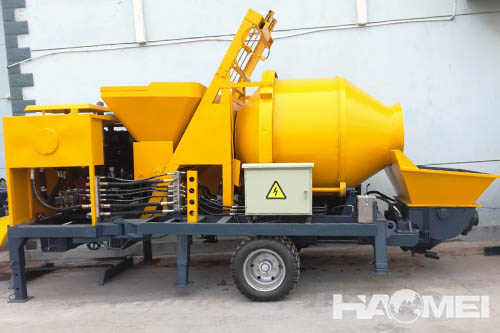

Cement Mixer with Pump

When it comes to cement mixer with pump, there are two important words: mixer and pump. As a matter of fact, it is a mechanical equipment used for cement feeding, mixing and pumping at the same time. It can be used for new house building, construction about water conservancy, dam, village road, and foundation filling.

Technical parameters of cement mixer with pump:

Items	Units	ABJZ30C	ABJZ40C	ABJS40C-JS500	ABJS40C-JS750
Max. theo. concrete output(L./H)	M3/h	30	40	40	40
Mixer rated feed capacity	m3	0.56	0.56	0.56	0.56
Mixer rated discharge capacity	m3	0.35	0.45	0.5	0.75
Max.concrete pumping pressure(H./L.)	MPa	10	10	8	8
Distribution valve type		S  Valve
Concrete cylinder diameter×stroke	mm	Φ140×1000	Φ180×1000	Φ200×1000	Φ200×1000
Hopper capacity	L	400	400	400	400
Outlet diameter	mm	Φ150	Φ150	Φ180	Φ180
Diesel engine model			Weichai	Weichai	Weichai
Electrical engineering power	KW	37	82	129	129
Rotate speed	r/min	1480	2200	2200	2200
Circuit type		Open circuit
Pumping system pressure	MPa	26	32	32	32
Mixing system pressure	MPa	6-8	6	6	6
Capacity of oil tank	L	260	350	350	350
Max. Theoretical Vertical/Horizontal Conveying Distance	m	120/300	120/500	120/500	120/500
Max. aggregate diameter	mm	Slick/scree:10/20	Slick/scree:40/50	Slick/scree:40/50	Slick/scree:40/50
Inside diameter of delivering pipe	mm	Φ100	Φ125	Φ125	Φ125
Dimensions：length×width×height	mm	4500x1750x1600	600x2300x3150	7500x2300x3150	7500x2300x3150
Total weight	kg	3000	4500	5000	5500

Main Application of Cement Mixer Pump

1, Cement mixing and pumping machine is a common equipment for building, bridge and tunnel construction projects.
2, Cement mixer pump is a new type concrete mixing pump, which is specially design for small civil building projects.
3, Cement mixer machine with pump has a high automation and save money and lab our greatly. Equipped with high-quality system, cement mixer and pump has stable performance and low failure rate and high reliability.
4, Besides, concrete mixer with pump also be used to transport greening soil, grout foundational pipe and transport sludge.

Features and Advantages of Cement Pump Mixer:

1, Equipped with high-performance structural system, it ensures the low pumping failure rates.
2, Adopting hard alloy material, spectacle plate and cutting ring has a long service time.
3, With high outlet pressure, it can meet the need of high buildings and long distance transportation.
4, With anti-pump function, it can minimize the pipeline blockage.
5, Equipped with manual lubrication system, it can ensure the long service time of transmission part.
6, The efficiency of cement mixer with pump is 4 to 6 times higher than concrete mixer and traditional concrete pump.
