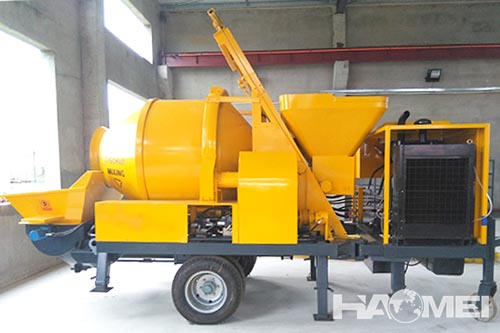

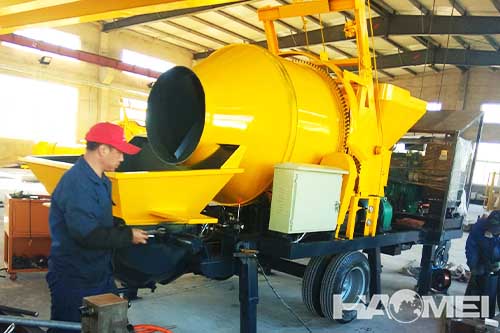

Concrete Mixer Pump Truck

Concrete mixer pump truck is a new innovation of concrete pump, is the combination of concrete mixer with pump. So, the concrete mixer with pump can complete the feeding, mixing, pumping by itself. It is an efficient concrete mixer and pump equipment which simplifies construction process. With it, there are so many advantages, such as decreasing artificial expenses, improving efficiency of 4-6 times, reducing construction cost, increasing construction progress.

The concrete mixer with pump truck of our factory has strong performance with vertical transport of concrete about 70m and horizontal transport of concrete about 200m. Transporting concrete to higher and farther construction site is becoming an easy task for concrete pump mixer truck. It can fully meet all kinds of pouring concrete demands, such as building, bridge, tunnel construction, etc.

Haomei have many types of mixer pump truck, like JB30R, JB40R, HBT0804-JZC200, JBS10-JZC200, JBS30-JZC350, JBS40-JZC350, JBS40-JS500, JBS40-JS750. At the same time, concrete mixer and pump can be divided into electrical type and diesel type, customers can select them according to their need. We will supply the most fair-able concrete mixer pump price for them.


Technical parameters of concrete mixer pump truck:

Items	Units	ABJZ30C	ABJZ40C	ABJS40C-JS500	ABJS40C-JS750
Max. theo. concrete output(L./H)	M3/h	30	40	40	40
Mixer rated feed capacity	m3	0.56	0.56	0.56	0.56
Mixer rated discharge capacity	m3	0.35	0.45	0.5	0.75
Max.concrete pumping pressure(H./L.)	MPa	10	10	8	8
Distribution valve type		S  Valve
Concrete cylinder diameter×stroke	mm	Φ140×1000	Φ180×1000	Φ200×1000	Φ200×1000
Hopper capacity	L	400	400	400	400
Outlet diameter	mm	Φ150	Φ150	Φ180	Φ180
Diesel engine model			Weichai	Weichai	Weichai
Electrical engineering power	KW	37	82	129	129
Rotate speed	r/min	1480	2200	2200	2200
Circuit type		Open circuit
Pumping system pressure	MPa	26	32	32	32
Mixing system pressure	MPa	6-8	6	6	6
Capacity of oil tank	L	260	350	350	350
Max. Theoretical Vertical/Horizontal Conveying Distance	m	120/300	120/500	120/500	120/500
Max. aggregate diameter	mm	Slick/scree:10/20	Slick/scree:40/50	Slick/scree:40/50	Slick/scree:40/50
Inside diameter of delivering pipe	mm	Φ100	Φ125	Φ125	Φ125
Dimensions：length×width×height	mm	4500x1750x1600	600x2300x3150	7500x2300x3150	7500x2300x3150
Total weight	kg	3000	4500	5000	5500

The Advantages Of Concrete Pump Mixer Truck

1. Diesel concrete mixer pump is not limited by electricity, is much more suitable for areas lacking electricity.
2. Equipped with hydraulic system, it is 95% more efficient than similar pump.
3. Has strong power force and more stable pumping performance, 20 cub concrete can be pumped per hour.
4. Lower fuel consumption. 8 dollars per hour can be saved than other pump manufactured than other manufacturers.
5. Lower faulty rate. Diesel engine supports power, the faulty rate will reduce by 90%.
6. More wear-resisting. Diesel concrete mixers with pump we supply have adopted 8mm steel material, which is thicker than 5mm steel diesel concrete mixing pump in the market.
