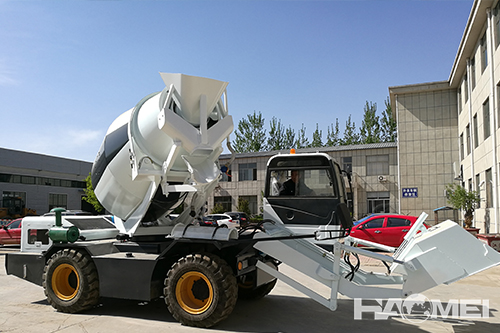

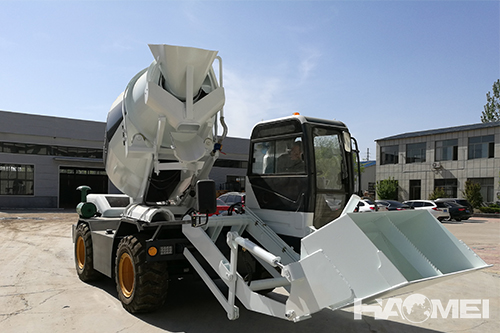

2.6 m3 Self Concrete Mixer

Self concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture at 270 degree. It is not exaggerated to say that just using a high efficient self loading concrete mixers for sale, one driver and one worker could complete the concrete work of a whole construction project. Equipped with a powerful engine and 4 wheel steering, the self-loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.

The configuration of self loading concrete mixer 2.6m3 are:

Equipment Model	2.6 cubic self loading concrete mixer
Drum geometrical capacity	3580L
Discharge Capacity	2600L
Engine Model	Yuchai 4102 Turbo-Charged
Rated Power	78kw
Gear box model	ZL-280 power shift transmission
Gear	4 forward 4 back
Fuel tank	75L
Total hydraulic system capacity	75 liters
Oil tank	16 liters
Reducer	HJ80-43
Hydraulic Pump	CBG9 2050/2032
Hydraulic Motor	BM5-160
Water tank	500L
Water supply	Time relay
Overall dimensions(L*W*H)	7800*2720*3000
Wheelbase (mm)	2615
Curb Weight (kg)	6500
Drive Form	Torque converter
Drum rotate	270º
Drum Mixing Speed (r/min)	13
Maximum grade	30º
Chassis Max.Speed (km/h)	30
Maximum turning radius (mm)	5300
Minimum ground clearance (mm)	380

The advantages of Haomei self propelled concrete mixer are:
