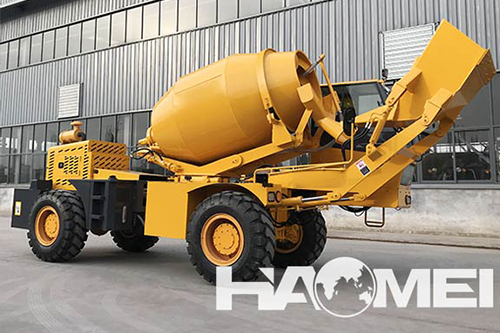

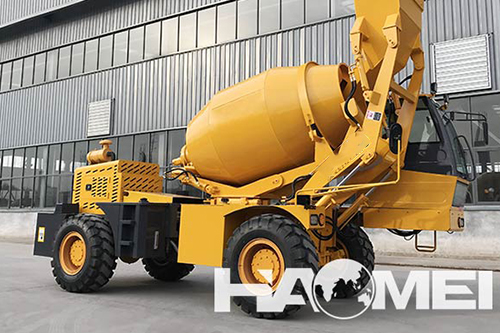

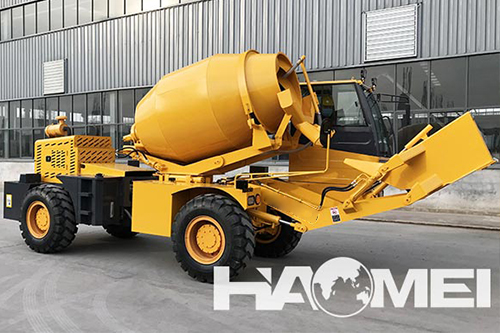

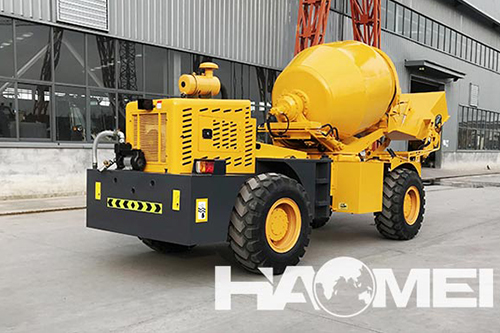

5.5m3 Self Loading Mixer
- Condition: New
- Delivery port: Qingdao or Tianjin port, China
- Payment term: L/C, T/T
- Guarantee period: 12 months
- Delivery time: 10-15 days after received deposit
- Installation time: 20days
Self loading mixer makes full use of the function of concrete mixer truck and mixing station, which realizes the automatic loading, metering, mixing and discharging of concrete. Self loading concrete mixers can realize the transportation of concrete at construction sites. It greatly improves the working efficiency and reduces the production time and cost. With the continuous demand of construction market, self loading cement mixer will gradually show its importance and advantages.
The configuration of 5.5m3 self loading mixer are:
| The performance parameters | 5.5 Cubic Meter |
| 270°Self Loading Concrete Mixer | |
| Overall Dimensions(L*W*H)mm | 8450x3100x4580 |
| Total Weight | 11200kg |
| Drum Capacity | 7800L |
| Production Capacity | 5.5Cubic Meter/Drum |
| Drum rotation speed | 20rpm |
| Hydraulic Motor | SUNNY56 |
| Engine Model | FAW XICHAI 6110 Turbo-Charged 6110 |
| Rated Power | 85kw |
| Max. climbing degree | 45° |
| Max. speed | 42km/h |
| Min. ground clearance | 380mm |
| Min. turning radius | 6200mm |
| Front and rear wheelbase | 3350mm |
| Left and right track | 2480mm |
| Water Tank | 860L |
| Fuel Tank | 180L |
| Fuel consumption L / h | 15.84 |
| Sand feeding time (minutes / tank) | 10 |
| Gear | 2 Forward 2 Back, Front Wheels Steering |
