HZS35 Concrete Batching Plant

Tel:+86-371-65621392

Condition: New
Delivery port: Qingdao or Tianjin port, China
Payment term: L/C, T/T
Guarantee period: 12 months
Delivery time: 10-15 days after received deposit
Installation time: 20days

Product Details

Double type made-in-China HZS35 commercial concrete batching plant
HZS35 concrete batching plant is one of the small-sized plant series of Haomei company. It is semi-automatic concrete mixing block composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies.

HZS35 small type stationary cement batch plant

1. Having the great features of stability and durability

2. Easy to operate and maintain with stationary structure in fast speed

3. Automatic computer control system, double controls

4. Excellent environmental protection, dust collection system and anti-noise design.

More information about HZS35 batching plant

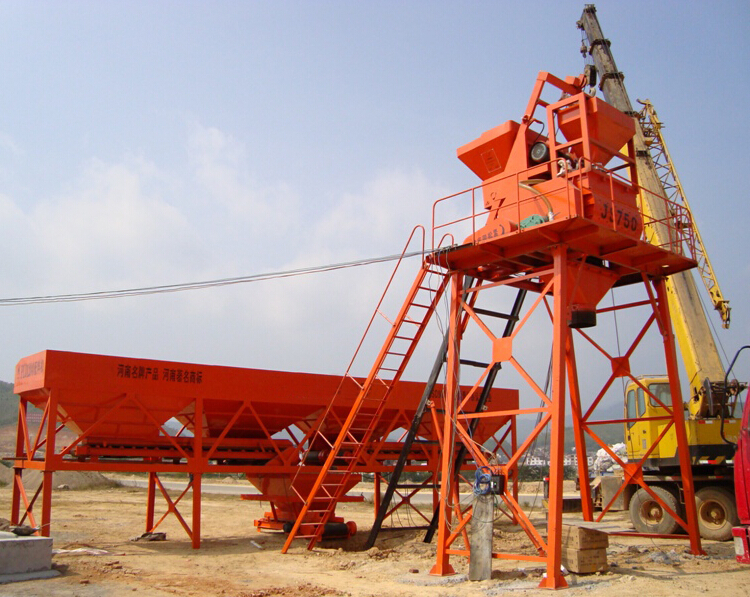

This concrete batching plant adopts combined structure and modular unit, convenient to install and remove; Mixing and aggregate lifting system adopt JS750 double-shaft compulsory concrete mixer which offers high quality and efficient mixing; Aggregate batching system adopts PLD1200 concrete batcher which offers efficient and accurate measurement; Powderlot is electronic measured, highly accurate dosing; Water is flow-metering, simple and practical, highly accurate dosing.

Technical parameters of this production line

Specification	Value
Productivity(m3/h)	35
Capacity of Mixer(m3)	0.75
Mixer Power(kw)	18.5
Discharge Height(m)	3.8(for customers choice)
Aggregate Bin(Quantity)	3
Aggregate Bin Capacity(m3)	1.2
Max.Weighing Value of Aggregate(kg)	850
Max.Weighing Value of Cement(kg)	500
Max.Weighing Value of Water(kg)	300
Max.Weighing Value of Additive(kg)	30
Aggregate Measuring Accuracy(%)	2
Water Measuring Accuracy(%)	1
Cement Measuring Accuracy(%)	1
Additive Measuring Accuracy(%)	1
Cement Silo(-)	Optional
Cement Screw Conveyor(-)	Optional
Cement Silo Capacity(-)	Optional
Control Mode(-)	Optional
