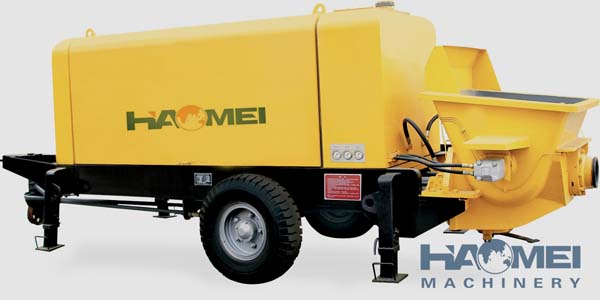

HBT60S1413-112R Trailer Concrete Pump

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

HBT60S1413-112R Trailer Concrete Pump Specifications

1.Following electric model,good quality

2.Electric control system of trailer concrete pump

3.Rexroth pump

4.Power system of trailer concrete pump

5.Lubrication system of trailer concrete truck pump

6. Pumping system of trailer concrete pump

7. Passed by ISO2001:9000

8. Hydraulic system of trailer concrete pump


HBT60S1413-112R Trailer Concrete Pump

HAOMEI Trailer Concrete Pump is a new product at international level which is developed by combining latest technologies both at home and abroad. HAOMEI S-valve serial high-pressure pumps, Z-gate-valve serial medium-pressure pumps and D-butterfly-valve serial low-pressure pumps are concrete transport equipments widely applied to such building projects as urban construction, bridge, power, and energy sources, etc. The machines adopt such world advanced techniques as open hydraulic loop, distribution valve auto-compensating clearance, constant power control, total hydraulic automatic change, and electric proportional control, etc., carried out deep and meticulous studies and experiments in many aspects like concrete piston self-lubricating, etc., and has won many patents.

HAOMEI pump trailer contains three series and more than twenty product types, and HAOMEI is the professional producing base with most complete models and specifications in CHINA, which can fully meet various needs of all customers. HAOMEI pump trailer all adopts steamline production assembly while the company strictly controls all the machining processes and assembly quality and gives final test to every pump trailer by simulation working conditions and overload experiments to ensure customers’ zero fault in the first operation.





Performance Advantages of HBT60S1413-112R Trailer concrete pump machine

1,Power system of HBT60S1413-112R trailer concrete pump
Main hydraulic pumps are famous German REXROTH products.Engine:German Deutz

2.Hydraulic system of HBT60S1413-112R trailer trailer concrete pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

3,Pumping system of HBT60S1413-112R trailertrailer concrete pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.

4.Lubrication system of HBT60S1413-112R trailertrailer mini concrete pump

5.Electric control system of HBT60S1413-112R trailer trailer pump truck for concrete
The reversing control is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.

Technical parameters of HBT60S1413-112R Trailer Concrete Pump

Specification Value
"Theory Concrete Output (Low / High Pressure)"(m3/h) 60
"Concrete Pressure (Low / high pressure)"(Mpa) 13/7.4
Hydraulic system pressure(Mpa) 32
Rotation speed(r/min) 1480
High / low pressure switch Yes
Distribution valve(S) valve
Pumping cylinder diameter/ Stroke(mm) 195/1500
Main oil pump discharge(ml/r) 110
Diesel engine(kw) 112
Voltage/ Frequency(V/Hz) 380/50
Hydraulic tank volume(L) 400
Height of adding material(mm) 1355
Hopper volume(m3) 0.8
Total mass(kg) 5800
Concrete slump(mm) 120-230
Aclinic Delivery distance(m) 1200
Theory vertical pumping height(m) 250
Dimension: L*W*H(mm) 6240*2110*2550
