HBT80S1813-145R Trailer Concrete Pump

Tel:+86-371-65621392
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

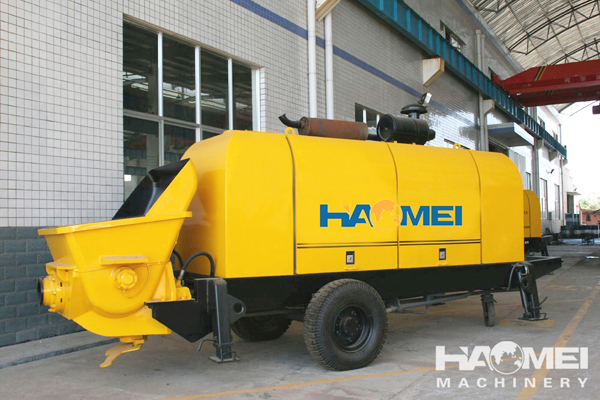

The main picture of concrete pump as you can see following

HBT80S1813-145R Trailer Concrete Pump Specifications
Power system of trailer concrete pump ; Electric control system of trailer concrete pump; Hydraulic system of trailer concrete pump;Pumping system of trailer concrete pump; Lubrication system of trailer; Following electric model,good quality; Passed by ISO2001:9000;Rexroth pump.

Performance Advantages of HBT80S1813-145R Trailer
1,Power system of HBT80S1813-145R Trailer mini concrete pump
Main hydraulic pumps are famous German REXROTH products.
Engine:German Deutz
2,Electric control system of HBT80S1813-145R Trailer Concrete Pump
The reversing control is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.
3,Hydraulic system of HBT80S1813-145R Trailer Concrete Pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
4,Pumping system of HBT80S1813-145R Trailer Concrete Pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
5.Lubrication system of HBT80S1813-145R Trailer Concrete Pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston.



Information about HBT80S1813-145R Trailer concrete pump for sale Specifications

HAOMEI Trailer Concrete Pump is a new product at international level which is developed by combining latest technologies both at home and abroad. HAOMEI S-valve serial high-pressure pumps, Z-gate-valve serial medium-pressure pumps and D-butterfly-valve serial low-pressure pumps are concrete transport equipments widely applied to such building projects as urban construction, bridge, power, and energy sources, etc. The machines adopt such world advanced techniques as open hydraulic loop, distribution valve auto-compensating clearance, constant power control, total hydraulic automatic change, and electric proportional control, etc., carried out deep and meticulous studies and experiments in many aspects like concrete piston self-lubricating, etc., and has won many patents.
HAOMEI pump trailer contains three series and more than twenty product types, and HAOMEI is the professional producing base with most complete models and specifications in CHINA, which can fully meet various needs of all customers. HAOMEI pump trailer all adopts steamline production assembly while the company strictly controls all the machining processes and assembly quality and gives final test to every pump trailer by simulation working conditions and overload experiments to ensure customers’ zero fault in the first operation.

Technical parameters of HBT80S1813-145R Trailer concrete pump truck price

Specification Value
"Theory Concrete Output (Low / High Pressure)"(m3/h) 85/42
"Concrete Pressure (Low / high pressure)"(Mpa) 12.5/5.28
Hydraulic system pressure(Mpa) 32
Rotation speed(r/min) 1480
High / low pressure switch Yes
Distribution valve(S) valve
Pumping cylinder diameter/ Stroke(mm) 200/1800
Main oil pump discharge(ml/r) 224
Diesel engine(kw) 145
Voltage/ Frequency(V/Hz) 380/50
Hydraulic tank volume(L) 500
Height of adding material(mm) 1400
Hopper volume(m3) 0.7
Total mass(kg) 6200
Concrete slump(mm) 120-200
Aclinic Delivery distance(m) 1000
Theory vertical pumping height(m) 250
Dimension: L*W*H(mm) 6680*2210*2150

hydraulic pump concrete mixer,concrete pump mixer,concrete mixer pump for sale,concrete mixer pump truck,pump concrete mixer,twin shaft mixer pump concrete diesel,concrete pump and mixer,diesel concrete mixer pump
