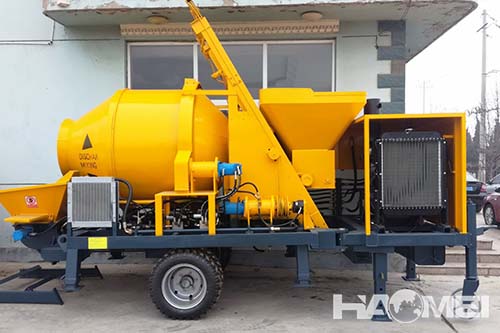

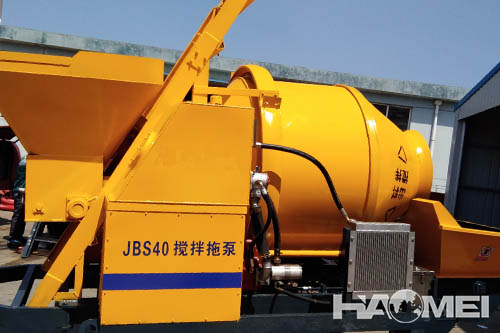

Diesel Concrete Mixer Pump

Deisel concrete mixer pump is a compound concrete equipment, which is used for mixing concrete and pumping concrete pump. Obviously its functions consist of two parts: mixing function and pumping function. Compared with common concrete pump, its function is diversified. What more important is that our mixer pumps have affordable price and high efficiency.

Concrete mixer with pump is a kind of modern construction machinery for concrete mixing and pumping. It is known for its convenient movement. In comparison with mobile trailer concrete pump, mixer pump is more advanced. On the one hand, it has more functions; on the other hand, it has wide applications. Thus, it is popular among global users.

Technical parameters of diesel concrete mixer pump:

Items	Units	ABJZ30C	ABJZ40C	ABJS40C-JS500	ABJS40C-JS750
Max. theo. concrete output(L./H)	M3/h	30	40	40	40
Mixer rated feed capacity	m3	0.56	0.56	0.56	0.56
Mixer rated discharge capacity	m3	0.35	0.45	0.5	0.75
Max.concrete pumping pressure(H./L.)	MPa	10	10	8	8
Distribution valve type		S  Valve
Concrete cylinder diameter×stroke	mm	Φ140×1000	Φ180×1000	Φ200×1000	Φ200×1000
Hopper capacity	L	400	400	400	400
Outlet diameter	mm	Φ150	Φ150	Φ180	Φ180
Diesel engine model			Weichai	Weichai	Weichai
Electrical engineering power	KW	37	82	129	129
Rotate speed	r/min	1480	2200	2200	2200
Circuit type		Open circuit
Pumping system pressure	MPa	26	32	32	32
Mixing system pressure	MPa	6-8	6	6	6
Capacity of oil tank	L	260	350	350	350
Max. Theoretical Vertical/Horizontal Conveying Distance	m	120/300	120/500	120/500	120/500
Max. aggregate diameter	mm	Slick/scree:10/20	Slick/scree:40/50	Slick/scree:40/50	Slick/scree:40/50
Inside diameter of delivering pipe	mm	Φ100	Φ125	Φ125	Φ125
Dimensions：length×width×height	mm	4500x1750x1600	600x2300x3150	7500x2300x3150	7500x2300x3150
Total weight	kg	3000	4500	5000	5500

Advanced Technology in the diesel Concrete Mixer with Pump

1.The mobile concrete mixer and pump can be used as concrete mixer and concrete pump. That’s to say, the equipment has the functions of mixing and pumping concrete. Compared with the manual operation, the pumping system has higher working efficiency. Therefore, it is helpful for the investors to shorten construction period and save the cost of labor.

2.All of the machines adopt JZC concrete mixers, such as JZC200, JZC350. The mixers have the advantages of great mixing capability and good mixing effect.

3.The integrated design of the concrete mixing pump enables the machine to occupy small space. Meanwhile, the machine can be moved easily because of the equipment of wheels. And the holders under the body guarantee the machine to stand stably.

4.The swing cylinder adopts advanced technology, which generates more thrust. So that the S-valve will have wider application than the common type.

5.The lubrication system has reliable performance. As long as the filter screen isn’t exposed outside, there will be no impurities in the grease box. And the lubrication system will have reliable performance and low failure rate.
