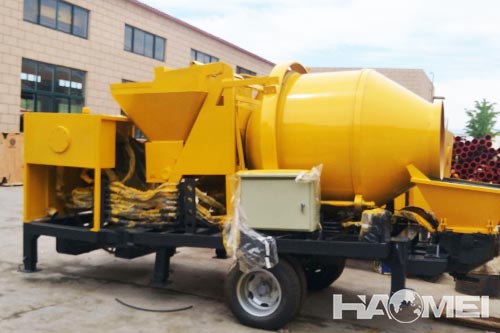

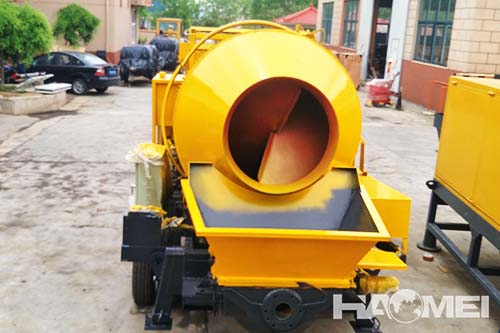

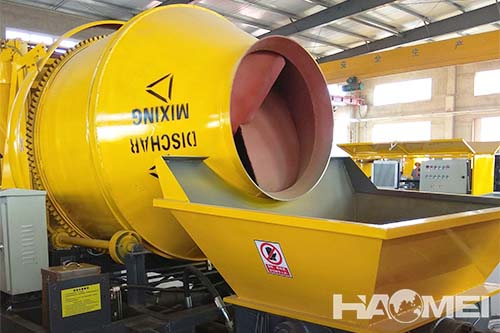

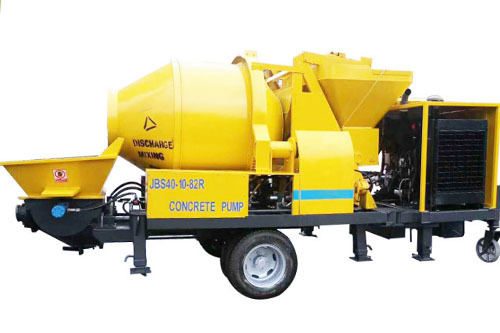

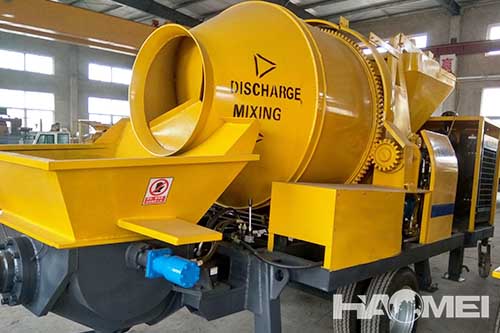

Concrete Mixer Pump

Concrete mixer pump for sale includes diesel and electric type, which is a new generation of concrete pumping machine. Because it is the combination of concrete mixer and concrete pump, which can help save a lot of cost. Besides, concrete mix pump in Haomei Machinery is sold with considerate after-sales service for customers. It is widely applicable in house building, bridge and tunnel construction etc, which can realize continuous concrete pumping under high pressure along the pipelines. Thus, concrete mixer machine with pump is well-received by global users.

Technical parameters of concrete mixer pump:

Items	Units	ABJZ30C	ABJZ40C	ABJS40C-JS500	ABJS40C-JS750
Max. theo. concrete output(L./H)	M3/h	30	40	40	40
Mixer rated feed capacity	m3	0.56	0.56	0.56	0.56
Mixer rated discharge capacity	m3	0.35	0.45	0.5	0.75
Max.concrete pumping pressure(H./L.)	MPa	10	10	8	8
Distribution valve type		S  Valve
Concrete cylinder diameter×stroke	mm	Φ140×1000	Φ180×1000	Φ200×1000	Φ200×1000
Hopper capacity	L	400	400	400	400
Outlet diameter	mm	Φ150	Φ150	Φ180	Φ180
Diesel engine model			Weichai	Weichai	Weichai
Electrical engineering power	KW	37	82	129	129
Rotate speed	r/min	1480	2200	2200	2200
Circuit type		Open circuit
Pumping system pressure	MPa	26	32	32	32
Mixing system pressure	MPa	6-8	6	6	6
Capacity of oil tank	L	260	350	350	350
Max. Theoretical Vertical/Horizontal Conveying Distance	m	120/300	120/500	120/500	120/500
Max. aggregate diameter	mm	Slick/scree:10/20	Slick/scree:40/50	Slick/scree:40/50	Slick/scree:40/50
Inside diameter of delivering pipe	mm	Φ100	Φ125	Φ125	Φ125
Dimensions：length×width×height	mm	4500x1750x1600	600x2300x3150	7500x2300x3150	7500x2300x3150
Total weight	kg	3000	4500	5000	5500

Special Design of concrete mixer pump machine

1. Concrete pump outlet is designed uniquely as coarse type, which is convenient to feeding concrete mixture, Besides, it is anti-resisting, which can prolong the service life.

2. The arch broken structure is designed on our small concrete pump machine. Therefore, the machine can avoid concrete congestion and ensure concrete mixer smooth running.

3. Hydraulic pipe joints adopt famous American Eaton brand product. So it can guarantee hydraulic system safety with no leakage and prolong its service life.

4. S-valve is cast by austenitic manganese steel with long life span. Therefore, it can prolong concrete pump serving life.

5. Both diesel and electric types are fully automated, which can greatly save time and labor. In addition, the diesel type is produced specially for the areas lacking of electricity.
